Brand: Plexus®
Cartridges:
Bulk Containers:

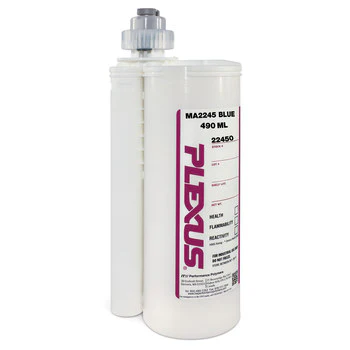

Plexus® MA2245 is a two-part methacrylate adhesive designed for structural bonding of thermoplastic, metal, and composite assemblies. It requires minimal surface preparation and can fill gaps from 0.03 inches to 1.5 inches (final gap fill depends on laminate thickness and composition).
With a 10:1 mix ratio, MA2245 has a working time of 50 minutes at 75°F (23.9°C) and achieves 500 psi in 95 – 100 minutes and 1000 psi in 125 – 130 minutes at 75°F (23.9°C). The adhesive provides excellent fatigue endurance, impact resistance, and superior toughness.
MA2245 is available in blue or black colors and is supplied in cartridges, pails, or drums. It dispenses as a non-sagging gel.
✅ Minimal Surface Preparation: Bonds many materials with little pre-treatment.
✅ Large Gap Filling: Works in gaps up to 1.5 inches.
✅ High Strength & Toughness: Provides excellent impact resistance and durability.
✅ Excellent Fatigue Resistance: Maintains strength under cyclic loads.
✅ Moderate Work Time: Provides 50 minutes of working life at 75°F (23.9°C).
🔹 Marine Industry: Bonding composite and metal components in boats and marine vessels.
🔹 Transportation: Structural bonding of thermoplastic and composite panels in automotive, rail, and aerospace.
🔹 Industrial Equipment: General manufacturing applications requiring high durability.
| Property | Part A (Adhesive) | Part B (Activator) |
|---|---|---|
| Color | Off-White | Black |
| Viscosity (cP x1000) | 190 – 250 | 35 – 70 |
| Density (g/mL) | 0.99 | 1.07 |
| Mix Ratio (by volume) | 10 | 1 |
| Mix Ratio (by weight) | 9.40 | 1 |
| VOC Content | <1% | <1% |
| Property | Value |
|---|---|
| Color | Off-White |
| Shore D Hardness | TBD |
| Elongation at Break | 40 – 80% |
| Tensile Strength (ASTM D638) | 2,160 – 2,640 psi (14.9 – 18.2 MPa) |
| Tensile Modulus | 94 – 127 kpsi (645 – 872 MPa) |
| Gap Tolerance | 0.03 – 1.5 in (0.75 – 38 mm) |
| Substrate | Lap Shear Strength (psi/MPa) | Failure Mode |
|---|---|---|
| Aluminum 6061 | 1,889 psi (13.0 MPa) | Cohesive Failure (CF) |
| FRP | 1,480 psi (10.2 MPa) | Fiber Tear (FT) |
| Steel | 1,710 psi (11.8 MPa) | Cohesive Failure (CF) |
| Temperature | Work Time | Time to 50 psi | Time to 500 psi | Time to 1000 psi |
|---|---|---|---|---|
| 60°F (15.6°C) | 60 – 65 min | 110 – 115 min | 125 – 130 min | 170 – 175 min |
| 75°F (23.9°C) | 50 min | 80 – 85 min | 95 – 100 min | 125 – 130 min |
| 90°F (32.2°C) | 33 – 34 min | 40 – 45 min | 50 – 55 min | 55 – 60 min |
