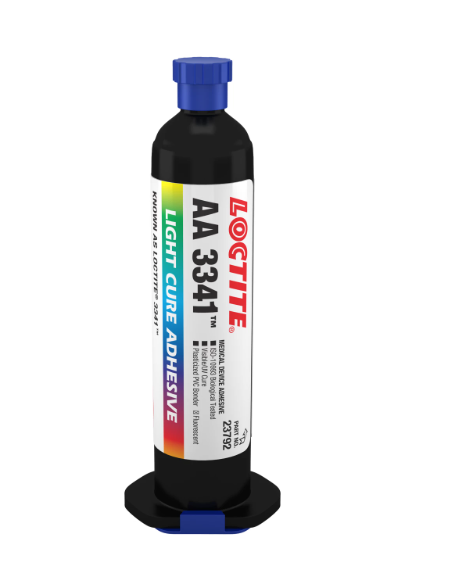

• Item Name: LOCTITE® AA 3341™
• Manufacturer: Henkel
• Technologies: Acrylic, Acrylated Urethane
• Color: Transparent light yellow
• Cure Type: Ultraviolet (UV) / Visible Light
• Package Size: Contact to Avantek for details.
• Shelf Life: Contact to Avantek for details.
| Property | Value |
|---|---|
| Uncured Properties | |
| Specific Gravity @ 25°C | 1.09 |
| Viscosity (Brookfield RVT) | 525 mPa·s (Spindle 1, 10 rpm) |
| Curing Performance | |
| UV Fixture Time (100 mW/cm², 365 nm) | 5 sec |
| Tack Free Time (100 mW/cm², 365 nm) | 8 sec |
| UV Depth of Cure | 4.0 mm |
| Cured Properties | |
| Shore Hardness (D) | 27 |
| Refractive Index | 1.5 |
| Elongation @ Break (%) | 220 |
| Tensile Strength (N/mm²) | 15 (2,200 psi) |
| Tensile Modulus (N/mm²) | 25 (3,600 psi) |
| Electrical Properties | |
| Surface Resistivity (Ω·cm) | 2.30 × 10¹⁵ |
| Volume Resistivity (Ω·cm) | 9.62 × 10¹⁴ |
| Dielectric Breakdown Strength | 31.5 kV/mm |
| Adhesion Strength | |
| Block Shear Strength (Polycarbonate to PVC) | 6.2 N/mm² (899 psi) |
| Environmental Resistance | |
| Water Immersion @ 49°C | 40% strength retention |
| Water Immersion @ 87°C | 20% strength retention |
| Heat/Humidity (95% RH @ 38°C) | 60% strength retention |
