Brands: Scotch-Weld™
Package Sizes:
Shelf Life: 12 months

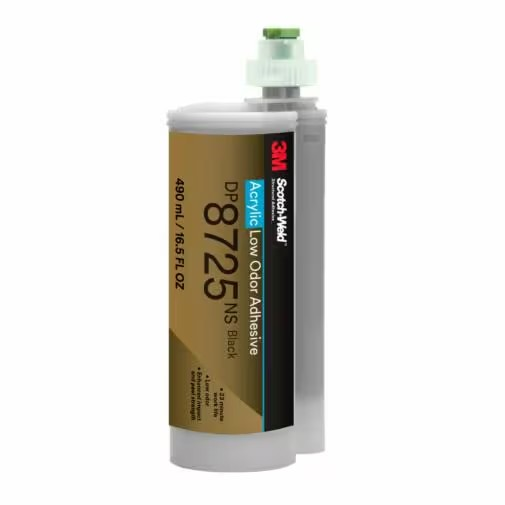

3M™ Scotch-Weld™ Low Odor Acrylic Adhesive DP8725NS is a black, non-sag, low-odor, two-part structural acrylic adhesive with a non-flammable classification. It is designed for bonding a variety of substrates, including plastics, composites, painted surfaces, aluminum, stainless steel, and other metals. This adhesive offers a 23-minute work life and achieves handling strength in approximately 25-30 minutes. It provides excellent impact strength, peel resistance, flexibility, and maintains structural strength at temperatures as low as -40°C (-40°F). The formulation includes spacer beads to control bond line thickness and requires minimal surface preparation. Additionally, it has no GHS08 Health Hazard classification, enhancing workplace safety.
| Attribute | Value |
|---|---|
| Color | Black |
| Mix Ratio by Volume (B:A) | 10:1 |
| Mix Ratio by Weight (B:A) | 10:1 |
| Base Viscosity | 40,000 cP¹ |
| Accelerator Viscosity | 15,000 cP¹ |
| Base Density | 1 g/cm³ |
| Accelerator Density | 1.1 g/cm³ |
¹ Viscosity measured using cone-and-plate viscometer; reported viscosity at 3.8 sec⁻¹ shear rate.
| Attribute | Value |
|---|---|
| Density (mixed) | 1 g/cm³ |
| Viscosity (mixed) | 40,000 cP |
| Work Life | 20-22 minutes¹ |
| Open Time | 25-30 minutes² |
| Time to Handling Strength | 25-30 minutes³ |
| Time to Structural Strength | 30-35 minutes⁴ |
| Time to Full Cure | 24 hours at 23°C (73°F) |
¹ Maximum time adhesive can remain in a static mixing nozzle and still be expelled without undue force.
² Maximum time allowed after applying adhesive to a substrate before bond must be closed and fixed.
³ Minimum time required to achieve 0.3 MPa (50 psi) of overlap shear strength.
⁴ Minimum time required to achieve 6.9 MPa (1,000 psi) of overlap shear strength.
| Attribute | Test Method | Value |
|---|---|---|
| Shore D Hardness | ASTM D2240 | 65 |
Overlap Shear Strength
| Substrate | Surface Preparation | Test Temperature | Dwell Time | Strength¹ |
|---|---|---|---|---|
| Acrylic (PMMA) | Light Abrasion and Solvent Clean | 23°C (73°F) | 24 hours | 3.7 MPa (539 psi) |
| Epoxy Resin (Fiber-Reinforced) | Light Abrasion and Solvent Clean | 23°C (73°F) | 24 hours | 9.9 MPa (1,435 psi) |
| Polyester (PET) | Light Abrasion and Solvent Clean | 23°C (73°F) | 24 hours | 5.2 MPa (756 psi) |
| Aluminum | MEK/Abrade/MEK | 23°C (73°F) | 7 days | 15 MPa (2,180 psi) |
| Cold Rolled Steel | MEK/Abrade/MEK | 23°C (73°F) | 7 days | 12.6 MPa (1,830 psi) |
| Aluminum | Light Abrasion and Solvent Clean | -40°C (-40°F) | 24 hours | 33 MPa (4,800 psi) |
| Aluminum | Light Abrasion and Solvent Clean | 82°C (180°F) | 24 hours | 4.9 MPa (709 psi) |
¹ Tested per ASTM D1002, ISO 4587.
