3. Typical Properties of NITOFLON

Below is a summary of the material properties for different NITOFLON product types:

Legend: ◎ = Excellent, ○ = Good, △ = Limited

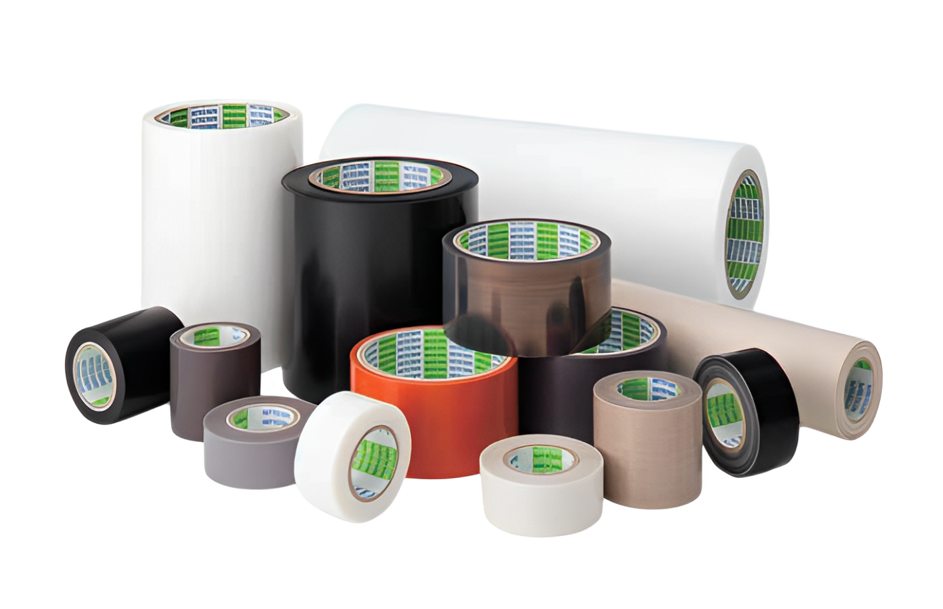

Nitto NITOFLON Series Items

Nitto NITOFLON products are categorized into different series based on their structure, properties, and intended applications.

1. NITOFLON® Films – No. 900 Series

PTFE films with excellent heat resistance, chemical resistance, and electrical insulation properties.

• Products: No. 900UL, No. 901UL, No. 902UL
• Thickness Range: 0.03 mm – 1.5 mm
• Key Features:
  • Non-adhesive
  • Excellent heat resistance (-100°C to 260°C)
  • Chemical resistance to acids, alkalis, and solvents
  • Suitable for insulation, molding release, and sliding applications

2. NITOFLON® High-Strength Films – No. 920 Series

Reinforced PTFE films with improved tensile strength and durability.

• Product: No. 920UL
• Thickness Range: 0.02 mm – 0.1 mm
• Key Features:
  • High tensile strength
  • Low friction and excellent electrical insulation
  • Used for insulation in high-temperature environments, motors, and transformers

3. NITOFLON® PTFE Impregnated Glass Cloth – No. 970 Series

PTFE-coated glass cloth with superior mechanical strength and heat resistance.

• Products: No. 970-2UL, No. 970-4UL, No. 9700UL
• Thickness Range: 0.05 mm – 0.25 mm
• Key Features:
  • Heat-resistant release agent for heat-sealing machines
  • Non-stick conveyor belts for food processing
  • Electrical insulation for high-temperature applications

4. NITOFLON® Adhesive Tapes – No. 903 Series

PTFE-based adhesive tapes with silicone adhesive for heat resistance and non-stick properties.

• Products: No. 903UL, No. 903-T, No. 903SC
• Thickness Range: 0.08 mm – 0.23 mm
• Key Features:
  • Heat resistance up to 200°C
  • Used for heat-resistant masking, solder masking, and friction control
  • Excellent electrical insulation for coils, cables, and sliding applications

5. NITOFLON® Adhesive Tape with High-Strength Film – No. 923 Series

Adhesive tapes with reinforced PTFE film for high-strength and durability.

• Products: No. 923UL, No. 923S, No. 923SL, No. 923UT
• Thickness Range: 0.04 mm – 0.17 mm
• Key Features:
  • High mechanical strength
  • Used for friction control, wire insulation, and sliding components

6. NITOFLON® Adhesive Tape with PTFE Impregnated Glass Cloth – No. 973 Series

Adhesive tapes made from PTFE-coated glass cloth for heat-resistant and non-stick applications.

• Products: No. 973UL-S, No. 973UL, No. 973SC
• Thickness Range: 0.13 mm – 0.18 mm
• Key Features:
  • Heat resistance up to 200°C
  • Used for heat-sealing, packaging machines, and printing equipment

7. Ultrahigh-Molecular-Weight Polyethylene (UHMWPE) Adhesive Products – No. 440/443 Series

UHMWPE-based films and adhesive tapes with excellent wear resistance and self-lubrication.

• Products: No. 440 (White/Black), No. 443 (White/Black), No. 4430 (White/Black)
• Thickness Range: 0.1 mm – 1.0 mm
• Key Features:
  • Extreme impact resistance
  • Friction control for sliding sections in electronics, printers, and cable protection

Summary of Series
