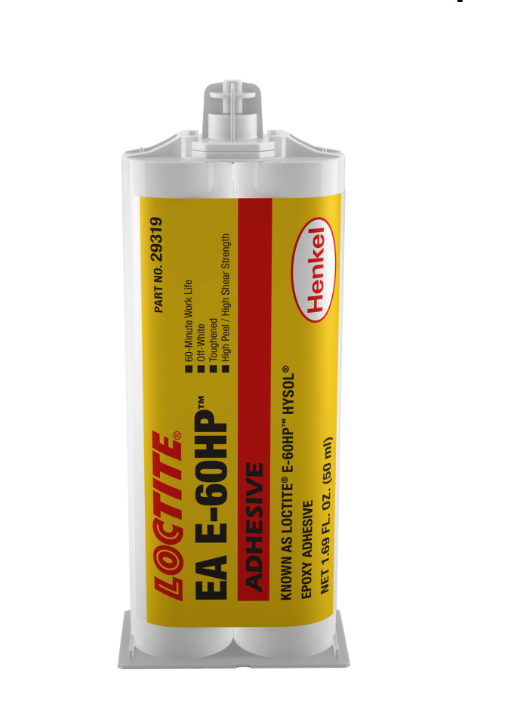

LOCTITE® EA E-60HP is a two-component, medium-viscosity, industrial-grade epoxy adhesive with an extended working life. It cures at room temperature to form a tough, off-white bondline and provides excellent adhesion to various substrates, including plastics, metals, glass, rubber, wood, and ceramics. The fully cured adhesive offers chemical resistance and electrical insulation, making it ideal for general-purpose industrial applications.
| Property | Resin | Hardener |
|---|---|---|
| Appearance | Pale yellow liquid | Yellow liquid |
| Specific Gravity (@ 23°C) | 1.0 | 1.0 |
| Viscosity (mPa·s @ 25°C) | 67,500 | 7,000 |
| Mix Ratio (by volume) | 2:1 | |
| Mix Ratio (by weight) | 100:50 |
| Property | Value |
|---|---|
| Working Life (@ 23°C) | 60 min |
| Tack-Free Time | 120 min |
| Full Cure Time (@ 25°C) | 24-72 hrs |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) | 70°C |
| Shore Hardness (Durometer D) | 80 |
| Elongation at Break (%) | 9 |
| Tensile Strength (N/mm²) | 35 (5,100 psi) |
| Dielectric Breakdown Strength (kV/mm) | 13 |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Mild Steel (Grit Blasted) | 30 | 4,300 |
| Aluminum (Acid Etched) | 30 | 4,300 |
| Aluminum (Anodized) | 18 | 2,600 |
| Stainless Steel | 27 | 3,900 |
| Polycarbonate | 13 | 1,900 |
| Nylon | 1.9 | 280 |
| Wood (Fir) | 12 | 1,700 |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| PVC | 12 | 1,700 |
| ABS | 13 | 1,900 |
| Epoxy | 29 | 4,200 |
| Acrylic | 1 | 150 |
| Glass | 32 | 4,600 |
