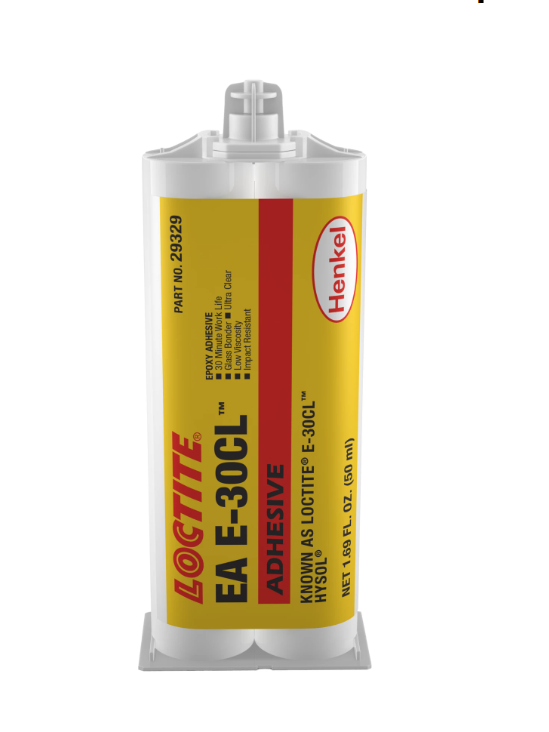

LOCTITE® EA E-30CL™ is a two-component, low-viscosity, industrial-grade epoxy adhesive that cures at room temperature. It provides an ultra-clear bondline with excellent impact resistance and dimensional stability. The fully cured adhesive is resistant to various chemicals and solvents and maintains performance across a wide temperature range.
| Property | Resin | Hardener |
|---|---|---|
| Specific Gravity (@ 25°C) | 1.1 | 1.0 |
| Viscosity (mPa·s) | 10,500 | 2,250 |
| Appearance | Clear to slight yellowish liquid |
| Property | Value |
| Specific Gravity (@ 25°C) | 1.07 |
| Mix Ratio (by volume) | 2:1 |
| Mix Ratio (by weight) | 100:46 |
| Property | Value |
| Tack Free Time (@ 25°C) | 160 min |
| Working Time (@ 25°C) | 30 min |
| Pot Life (@ 100°C, 250g) | 90-150 sec |
| Property | Value |
| Shore Hardness (D) | 80-90 |
| Glass Transition Temperature (Tg) | 61°C |
| Volume Shrinkage | 4.3% |
| Linear Shrinkage | 1.45 in/in |
| Elongation | 8% |
| Tensile Strength | 55 N/mm² (8,000 psi) |
| Property | Value |
| Dielectric Breakdown Strength | 20 kV/mm |
| Substrate | Strength (N/mm²) | Strength (psi) |
| Steel (grit blasted) | 21 | 3,100 |
| Aluminum (anodized) | 21 | 3,070 |
| Stainless Steel (0.13 mm gap) | 14 | 1,970 |
| Polycarbonate (0.13 mm gap) | 13 | 1,950 |
| Wood (Fir) (0.13 mm gap) | 12 | 1,750 |
| Nylon | 2.4 | 350 |
| Glass | 24 | 3,540 |
