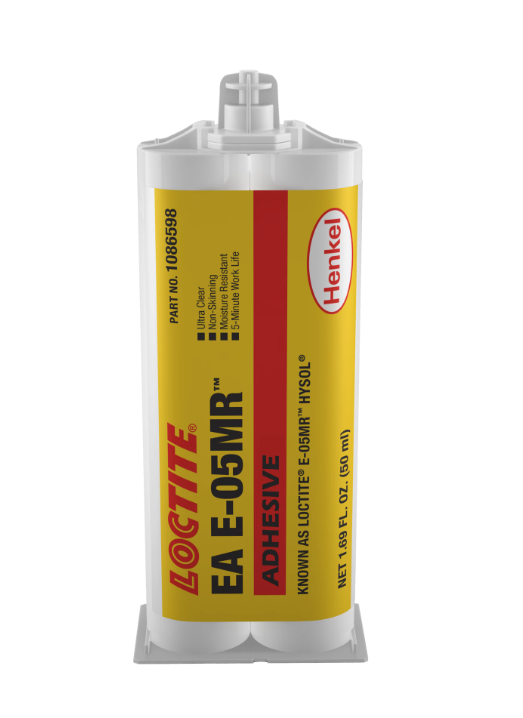

• Item Name: LOCTITE® EA E-05MR™
• Manufacturer: Henkel
• Technologies: Epoxy
• Color: Resin – Ultra clear, Hardener – Ultra clear, Mixture – Water white clear liquid
• Cure Type: Room temperature cure
• Package Size: Contact to Avantek for details.
• Shelf Life: Contact to Avantek for details.
LOCTITE® EA E-05MR™ is a two-component epoxy adhesive that cures at room temperature, forming an ultra-clear bondline with excellent impact resistance. It is designed for general-purpose bonding and offers gap-filling properties, making it suitable for bonding metal, ceramics, rigid plastics, and wood.
| Property | Resin | Hardener | Mixture |
|---|---|---|---|
| Appearance | Ultra clear | Ultra clear | Water white clear liquid |
| Specific Gravity @ 25°C | 1.17 | 1.16 | 1.16 |
| Viscosity (mPa·s) @ 100 s⁻¹ | 18,000 – 25,000 | 18,000 – 25,000 | – |
| Mix Ratio (by volume) | 1:1 | ||
| Gel Time @ 22°C | 7 – 12 min |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) | 39°C |
| Shore Hardness (D) | 78 |
| Coefficient of Thermal Expansion (Pre Tg) | 49 × 10⁻⁶ K⁻¹ |
| Dielectric Breakdown Strength | 34 kV/mm |
| Elongation at Break | 4.5% |
| Tensile Strength | 50 N/mm² (7,240 psi) |
| Tensile Modulus | 1,500 N/mm² (217,440 psi) |
| Substrate | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| Steel (grit blasted) | 23 | 3,380 |
| Aluminum (abraded) | 7 | 1,010 |
| Aluminum (anodized) | 14 | 2,080 |
| Stainless Steel | 5 | 770 |
| Polycarbonate | 3 | 380 |
| Nylon to Steel | 2 | 320 |
| Wood (Pine) to Steel | 7 | 1,020 |
| Material | Strength (N/mm²) | Strength (psi) |
|---|---|---|
| PVC | 1 | 160 |
| ABS | 5.7 | 820 |
| Epoxy | 11 | 1,570 |
| Acrylic | 1.5 | 220 |
| Glass | 6.6 | 950 |
| Substrate | Impact Strength (J) |
|---|---|
| Steel (grit blasted) | 5 |
| Aluminum (etched) | 6 |
