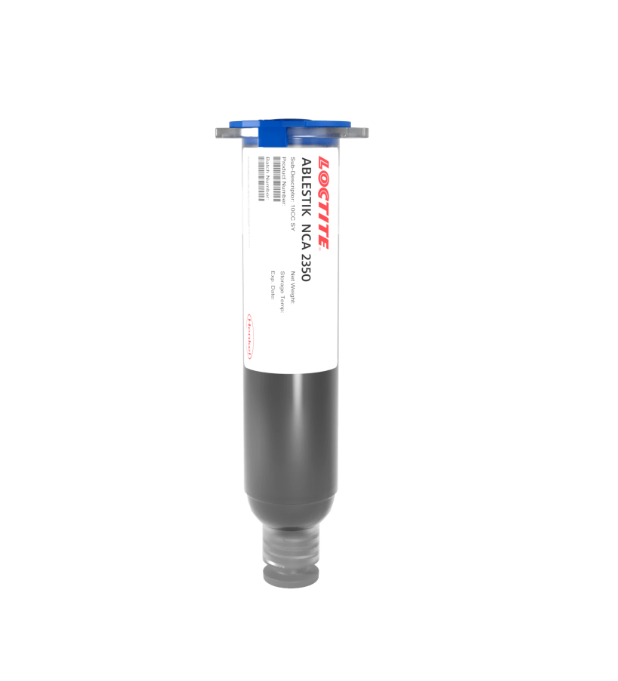

LOCTITE ABLESTIK NCA 2350 is a one-component, heat-curing epoxy adhesive and sealant. It is specifically designed for camera module housing assembly and heat-sensitive devices. The adhesive features fast curing at low temperatures, excellent adhesion, and good sealing properties.
| Uncured Properties | Value |
|---|---|
| Appearance | Black liquid |
| Viscosity @ 25°C (Brookfield CP51, 5 rpm) | 13,670 mPa·s |
| Thixotropic Index | 3.7 |
| Pot Life @ 25°C | 3 days |
| Shelf Life @ -20°C | 183 days |
| Curing Conditions | Value |
|---|---|
| Heat Cure | 2 min @ 80°C (hot plate) / 30 min @ 80°C (conventional oven) |
| Weight Loss on Cure | 0.21% |
| Cured Properties | Value |
|---|---|
| Hardness (Shore D) | 75 |
| Glass Transition Temperature (Tg) | 28°C |
| Coefficient of Thermal Expansion | 66 ppm/°C (below Tg), 180 ppm/°C (above Tg) |
| Volumetric Shrinkage on Cure | 2.8% |
| Elongation at Break | 110% |
| Tensile Modulus | 2,533 N/mm² (367,380 psi) @ 25°C |
| Tensile Modulus | 30 N/mm² (4,351 psi) @ 85°C |
| Shear Strength (Lap Shear Test) | Value |
|---|---|
| Lap Shear Strength | 18 N/mm² (2,610 psi) |
