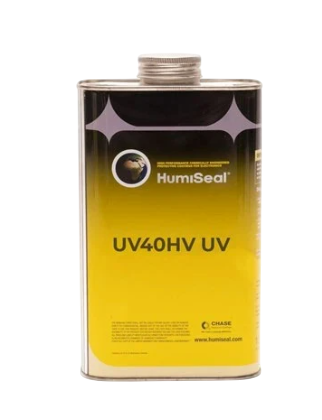

HumiSeal® UV40HV is a high-solids, single-component, UV-curable acrylated polyurethane conformal coating. It offers excellent chemical resistance, surface hardness, flexibility, and moisture resistance. The coating is tack-free after UV exposure and features a secondary moisture cure for unexposed areas. It fluoresces under UV light for inspection and complies with RoHS Directive 2011/65/EU.
| Property | Value |
|---|---|
| Density | 1.05 – 1.15 g/cm³ |
| Minimum Solids Content | 95% |
| Viscosity (Fed-Std-141, Method 4287) | 3,700 ± 1,300 cP |
| Shelf Life (Room Temp.) | 12 months |
| Recommended Stripper | HumiSeal® Stripper 1100 (not available in EU) |
| Thermal Shock (50 cycles, -65°C to 125°C) | Pass |
| Glass Transition Temperature (Tg) | 45°C |
| Coefficient of Thermal Expansion (TMA) | 85 ppm/°C (below Tg), 197 ppm/°C (above Tg) |
| Dielectric Withstand Voltage | >1500V |
| Dielectric Constant (1MHz, 25°C, ASTM D150-98) | 2.5 |
| Dissipation Factor (1MHz, 25°C, ASTM D150-98) | 0.01 |
| Insulation Resistance | 8.0 × 10¹⁴ Ω (800TΩ) |
| Moisture Insulation Resistance | 4.7 × 10¹⁰ Ω (47GΩ) |
| Fungus Resistance (ASTM G21) | Pass |
