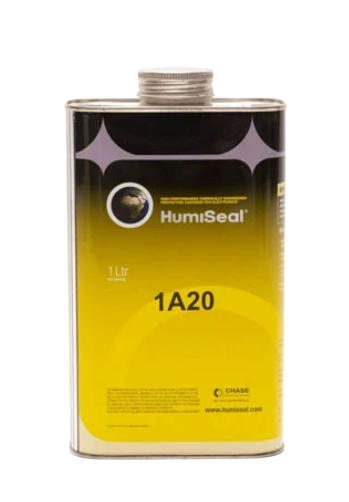

HumiSeal® 1A20 is a single-component, chemically resistant, fast-curing polyurethane conformal coating. It fluoresces under UV light for inspection and meets MIL-I-46058C, IPC-CC-830, and RoHS Directive 2002/95/EC standards. The product is UL-recognized under File Number E105698.
| Property | Value |
|---|---|
| Density | 1.02 ± 0.02 g/cm³ |
| Solids Content | 50 ± 3% |
| Viscosity | 100 ± 30 cP |
| VOC | 511 g/L |
| Recommended Coating Thickness | 25 – 75 µm |
| Drying Time to Handle | 60 minutes |
| Recommended Curing | 24 hrs @ RT or 3 hrs @ 76°C |
| Time to Reach Optimum Properties | 7 days |
| Shelf Life | 6 months at RT |
| Property | Value |
|---|---|
| Thermal Shock Resistance | -65°C to 125°C |
| Coefficient of Thermal Expansion | 515 ppm/°C |
| Glass Transition Temperature (Tg) | 71°C |
| Modulus (DMA) | 89.6 MPa |
| Flammability (UL94) | V-0 |
| Dielectric Withstand Voltage | >1500V |
| Dielectric Constant (1MHz, 25°C) | 3.5 |
| Dissipation Factor (1MHz, 25°C) | 0.028 |
| Insulation Resistance | 3.0 x 10¹⁴ Ω |
| Moisture Insulation Resistance | 4.8 x 10¹⁰ Ω |
| Fungus Resistance | Passes |
| Chemical Resistance | Excellent |
