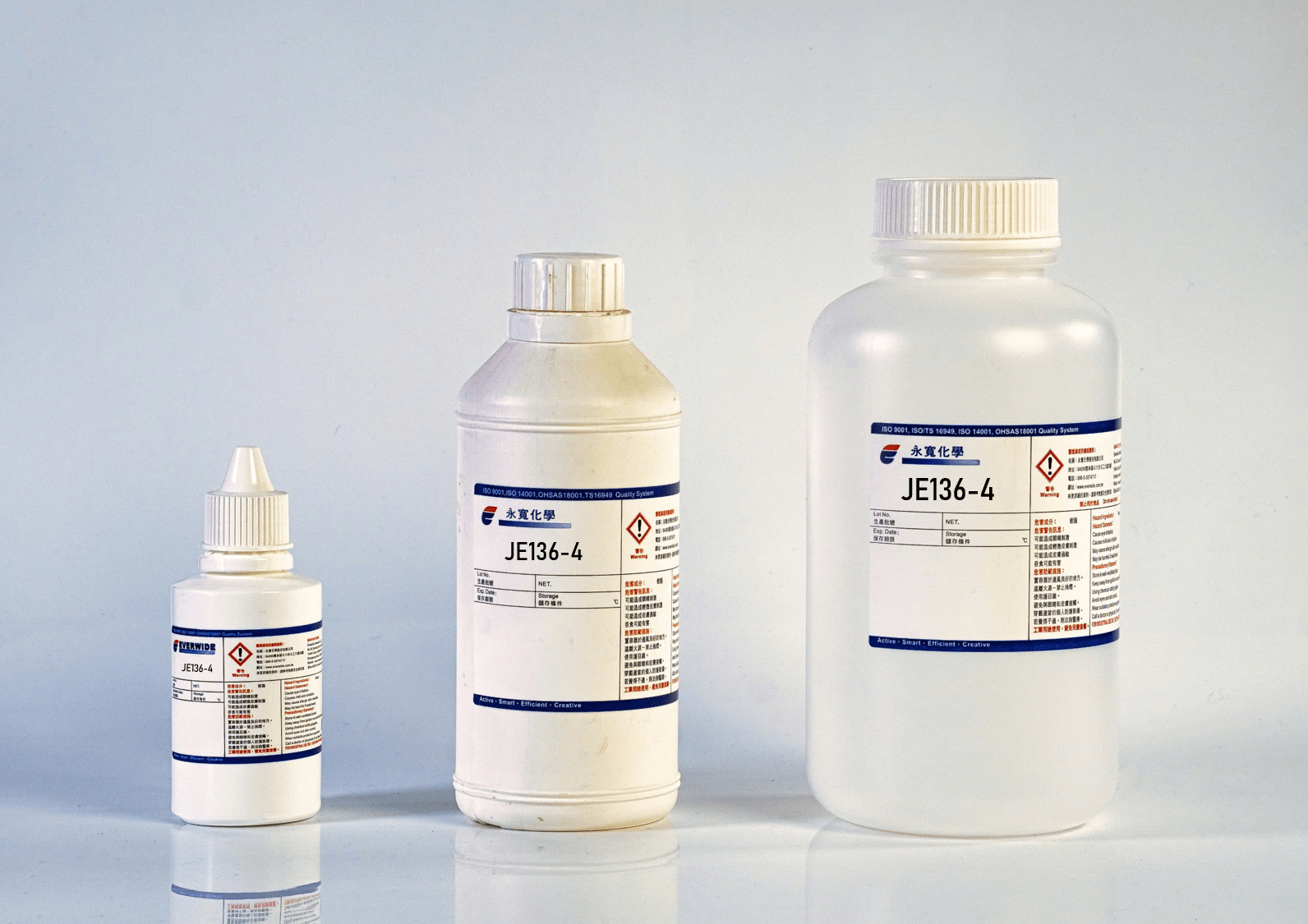

Brand: Everwide
Product Number: JE136-4
Technology: Epoxy for Motors Potting
Color: Black (Part A), Gray (Part B)
Cure Type: Heat Curing
Package Size: Contact us for details
Shelf Life: 6 months
Everwide JE136-4 is a two-component epoxy resin formulated for electronic device and motor potting applications. It exhibits low shrinkage, high thermal conductivity, and excellent thermal shock resistance after curing. The adhesive offers strong adhesion, resistance to grease, chemicals, and solvents, making it suitable for vibrational applications requiring high durability.
| Property | JE136-4A (Part A) | JE136-4B (Part B) |
|---|---|---|
| Appearance | Liquid | Liquid |
| Color | Black | Gray |
| Viscosity (25°C, S14 5rpm, cps) | 50,000–150,000 | 4,000–8,000 |
| Mixing Viscosity (25°C, S14 50rpm, cps) | 10,000–20,000 | – |
| Mixing Viscosity (60°C, S14 100rpm, cps) | 1,000–2,000 | – |
| Specific Gravity | 2.23 | 2.23 |
| Property | Value |
|---|---|
| Mix Ratio (A:B) by Weight | 1:1 |
| Pot Life (25°C) | 4 hr |
| Through Cure Time (120°C) | 3 hr |
| Through Cure Time (130°C) | 1 hr |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) (DSC) | 160°C |
| CTE (<Tg), µm/m/°C | 32 |
| CTE (>Tg), µm/m/°C | 110 |
| Durometer Hardness (Shore D) | 91 |
| Specific Gravity | 2.26 |
| Water Absorption (25°C, 24 hr) | 0.02% |
| Water Absorption (80°C, 24 hr) | 0.13% |
| Water Absorption (97°C, 1.5 hr) | 0.08% |
| Degradation Temperature (TGA, 10°C/min) | 342°C |
| Thermal Conductivity | 1.3 W/mK |
| Volume Resistivity | 2.5 × 10¹⁵ ohm-cm |
| Dielectric Strength | 25 kV/mm |
| Dielectric Constant (60Hz) | 3.4 |
| Bending Strength | 120 MPa |
| Temperature Range | -40 to 200°C |
