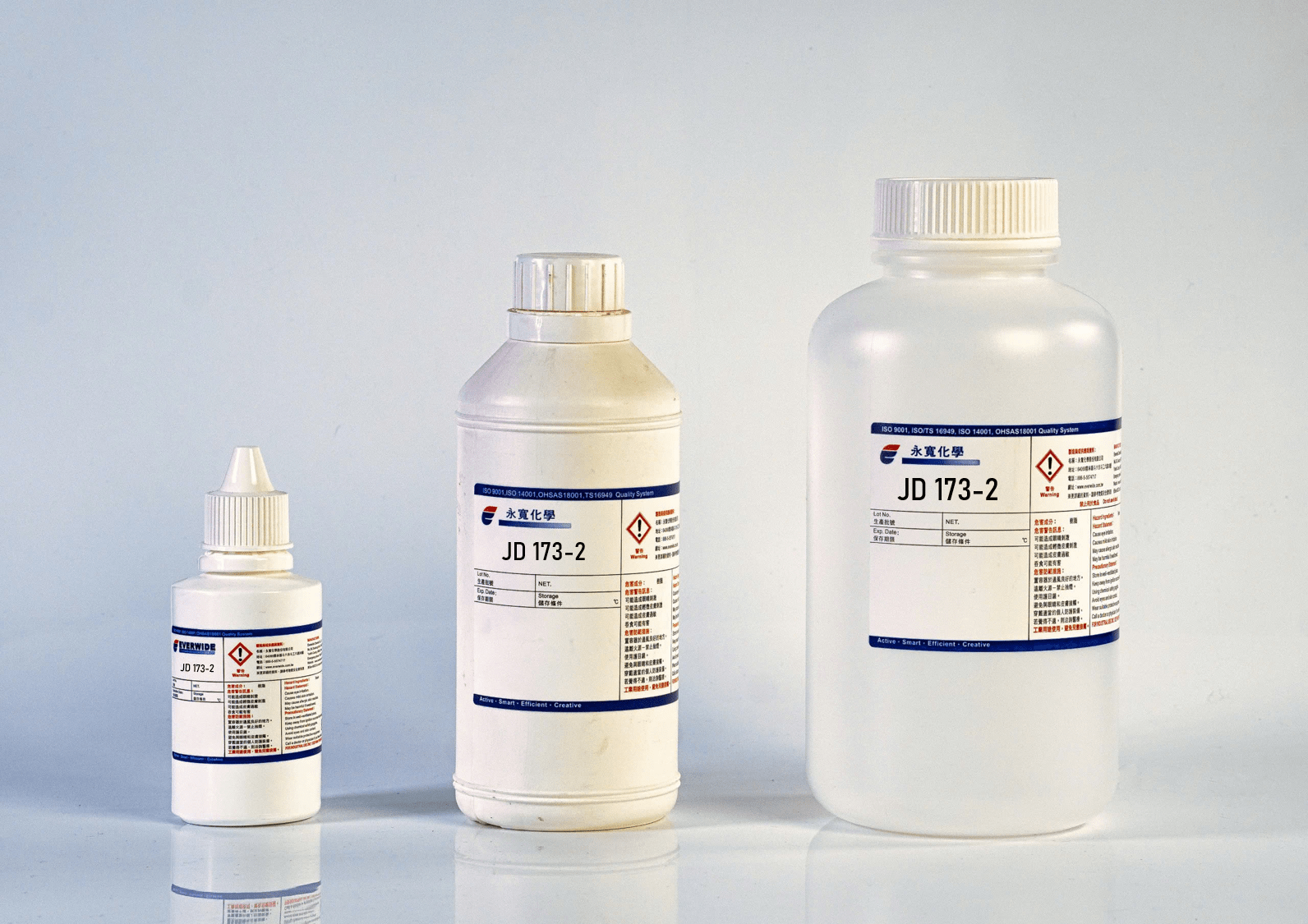

Brand: Everwide
Product Number: JD173-2
Technology: Two-Component Thermally Conductive Epoxy
Color: Gray (Part A), White (Part B)
Cure Type: Room Temperature or Heat Curing
Package Size: Contact us for details
Shelf Life: 6 months
Everwide JD173-2 is a two-component thermally conductive epoxy designed for electronics and thermal modules. It is an inorganic powder-filled epoxy that exhibits excellent thermal conductivity, electrical insulation, low shrinkage, and low water absorption. This adhesive also demonstrates superior adhesion strength to metal substrates, making it ideal for thermal management applications.
| Property | JD173-2A (Part A) | JD173-2B (Part B) |
|---|---|---|
| Appearance | Liquid | Liquid |
| Color | Gray | White |
| Viscosity (25°C, S14 2rpm, cps) | 170,000–280,000 | 230,000–400,000 |
| Viscosity (25°C, S14 20rpm, cps) | 49,000–60,000 | – |
| Mixed Viscosity (25°C, S14 2rpm, cps) | 170,000–100,000 | |
| Thixotropic Index | 3–4.5 | – |
| Specific Gravity | 2.37 | 2.33 |
| Property | Value |
|---|---|
| Mix Ratio (A:B) by Weight | 2:1 |
| Pot Life (25°C) | 1 hr |
| Through Cure Time (25°C) | 7 days |
| Through Cure Time (80°C) | 60 min |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) (MDSC) | 44°C |
| CTE (<Tg), µm/m/°C | 29 |
| CTE (>Tg), µm/m/°C | 100 |
| Specific Heat (0°C) | 0.579 J/g°C |
| Specific Heat (25°C) | 0.624 J/g°C |
| Specific Heat (50°C) | 0.775 J/g°C |
| Specific Heat (75°C) | 0.831 J/g°C |
| Specific Heat (100°C) | 0.881 J/g°C |
| Durometer Hardness (Shore D) | 88 |
| Specific Gravity | 2.42 |
| Shear Strength (Al vs. Al) | 259 kgf/cm² |
| Water Absorption (25°C, 24 hr) | 0.22% |
| Water Absorption (80°C, 24 hr) | 0.79% |
| Water Absorption (97°C, 1.5 hr) | 0.53% |
| Degradation Temperature (TGA, 10°C/min) | 314°C |
| Weight Loss Ratio @ 100°C | 0% |
| Weight Loss Ratio @ 150°C | 0.21% |
| Weight Loss Ratio @ 200°C | 0.76% |
| Weight Loss Ratio @ 250°C | 2.76% |
| Weight Loss Ratio @ 300°C | 4.24% |
| Weight Loss Ratio @ 350°C | 8.74% |
| Thermal Conductivity | 2 W/mK |
| Thermal Resistance | 0.002 m²K/W |
| Volume Resistivity | 3.84 × 10¹³ ohm-cm |
| Surface Resistivity | 5.61 × 10¹² ohm |
