Brand: Everwide
Product Number: JA484
Technology: Fast-setting Epoxy Adhesive
Color: Colorless (Part A), Light Yellow Clear (Part B)
Cure Type: Room Temperature Curing
Package Size: Contact us for details
Shelf Life: 1 year

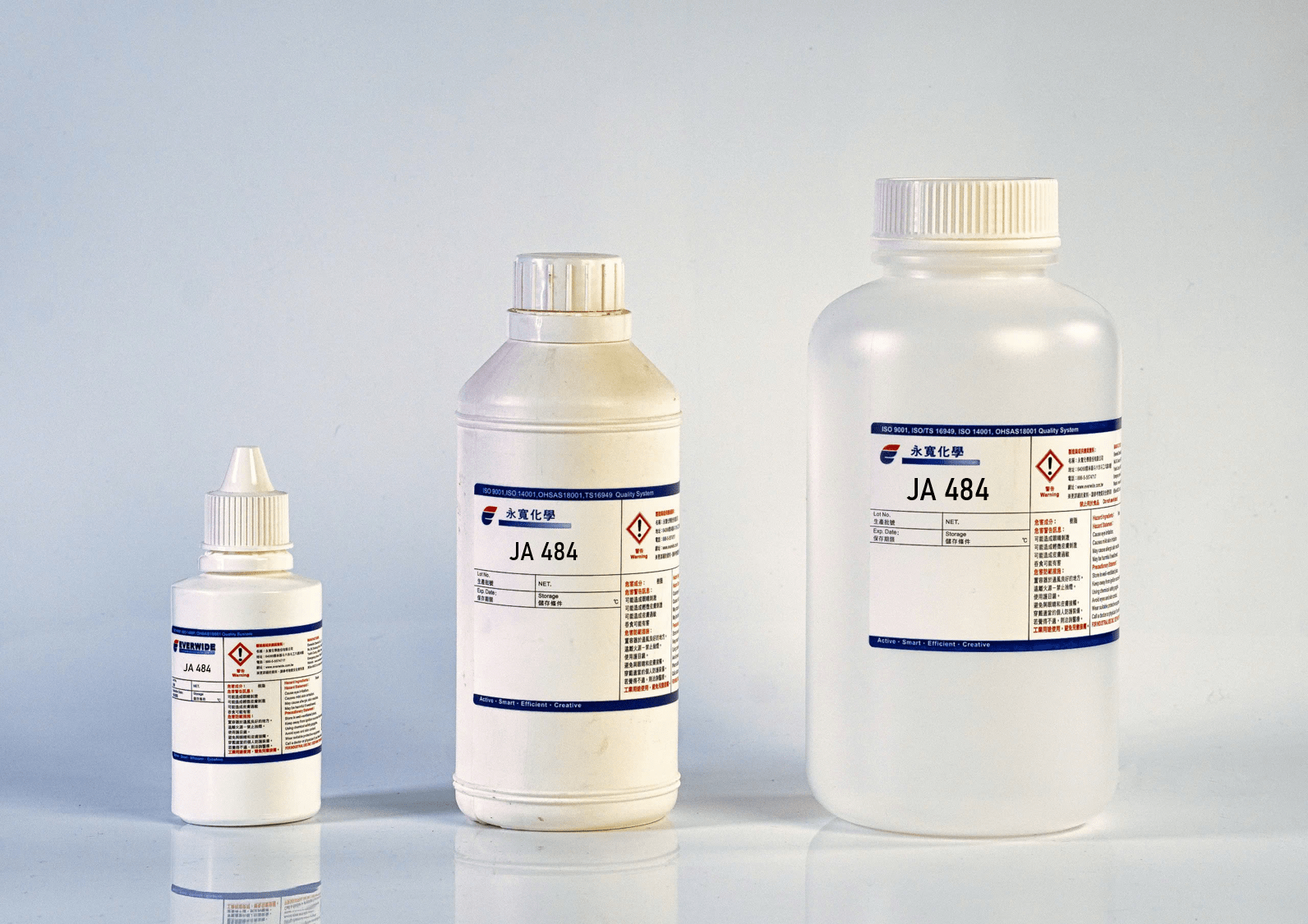

Everwide JA484 is a two-component epoxy resin designed for fast curing, providing high adhesion strength and excellent resistance to grease, chemicals, and solvents. It is suitable for bonding plastics, ceramics, glass, and metals. The adhesive develops initial strength in 20 minutes, significantly improving efficiency and reducing production time.
| Property | JA484A (Part A) | JA484B (Part B) |
|---|---|---|
| Appearance | Liquid | Liquid |
| Color | Colorless | Light Yellow Clear |
| Viscosity (25°C, cps) | 7,000–17,000 | 10,000–15,000 |
| Specific Gravity | 1.16 | 1.11 |
| Property | Value |
|---|---|
| Mix Ratio (A:B) by Volume | 1:1 |
| Mix Ratio (A:B) by Weight | 1:1 to 0.95 |
| Pot Life (25°C) | 3 min |
| Surface Dry Time (25°C, 2g) | 13 min |
| Through Cure Time (25°C) | 3 days |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) | 52°C |
| CTE (>Tg), µm/m/°C | 218 |
| Durometer Hardness (Shore D) | 84 |
| Water Absorption (25°C, 24 hr) | 2.6% |
| Water Absorption (80°C, 24 hr) | 9.06% |
| Water Absorption (97°C, 1.5 hr) | 5.77% |
| Shear Strength (Al vs. Al, 25°C) | 207 kgf/cm² |
| Shear Strength (Al vs. Al, 80°C) | 154 kgf/cm² |
| Tensile Strength | 40 MPa |
| Elongation | 3.8% |
| Flexural Strength | 68 MPa |
| Flexural Modulus | 2,000 MPa |
| Compression Strength | 70 MPa |
| Degradation Temperature (TGA, 10°C/min) | 332°C |
| Volume Resistivity | 5 × 10¹⁵ ohm-cm |
| Surface Resistivity | 5 × 10¹⁴ ohm |
| Dielectric Constant (100Hz) | 4.1 |
| Temperature Range | -20 to 80°C |
