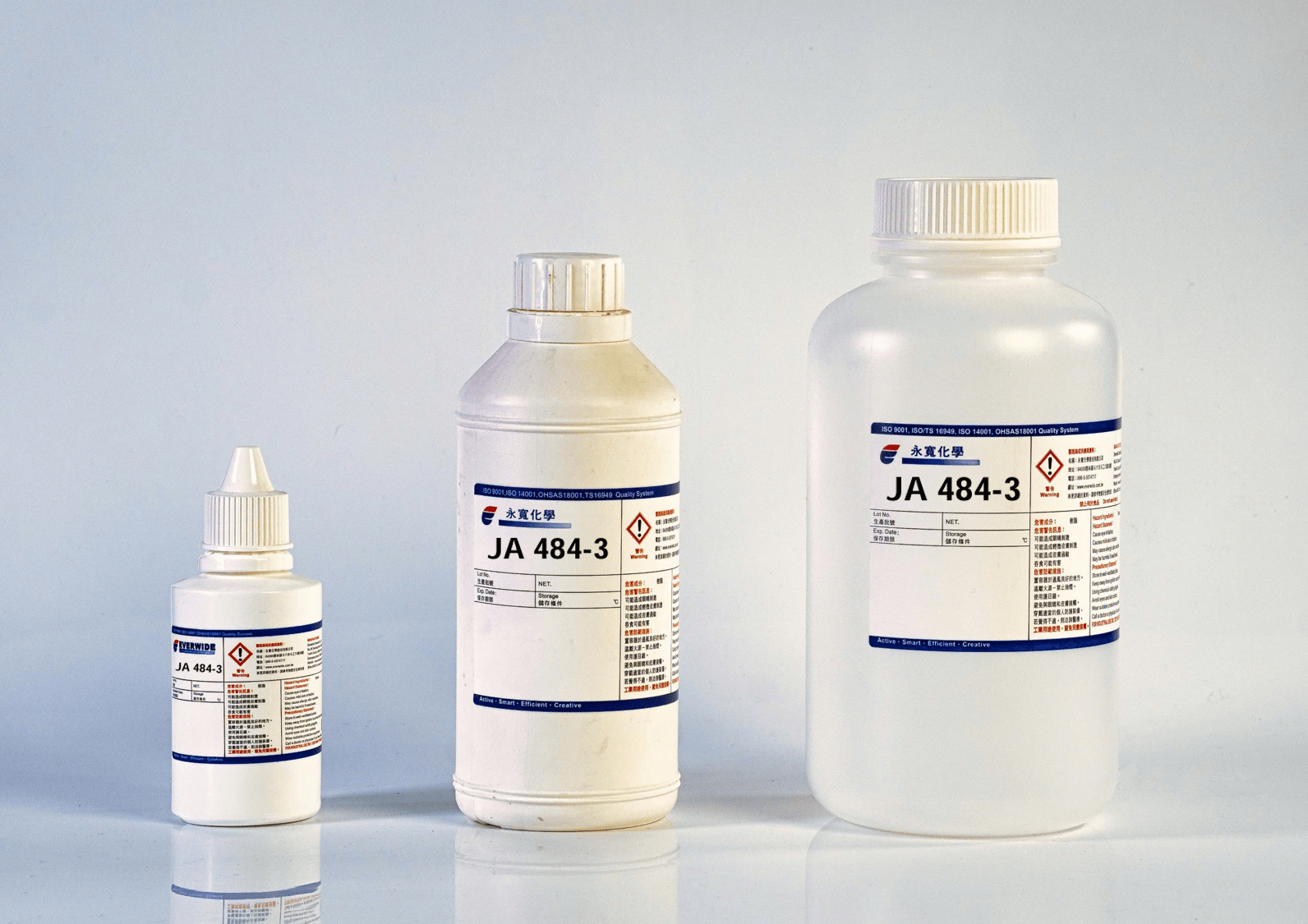

Brand: Everwide
Product Number: JA484-3
Technology: Fast-setting Epoxy Adhesive
Color: Colorless (Part A), Light Yellow (Part B)
Cure Type: Room Temperature Curing
Package Size: Contact us for details
Shelf Life: 1 year
Everwide JA484-3 is a two-component epoxy resin designed for fast curing, offering high adhesion strength and excellent resistance to grease, chemicals, and solvents. It is well-suited for bonding plastics, ceramics, glass, and metals. This adhesive is ideal for applications requiring rapid processing, as it achieves fast initial strength in approximately 20 minutes, significantly reducing working time and improving efficiency.
| Property | JA484-3A (Part A) | JA484-3B (Part B) |
|---|---|---|
| Appearance | Liquid | Liquid |
| Color | Colorless | Light Yellow |
| Viscosity (25°C, cps) | 15,000–23,000 | 10,000–15,000 |
| Specific Gravity | 1.16 | 1.11 |
| Property | Value |
|---|---|
| Mix Ratio (A:B) by Weight | 1:1 |
| Pot Life (25°C) | 3 min |
| Surface Dry Time (5g, 25°C) | 13 min |
| Through Cure Time (25°C) | 3 days |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) | 52°C |
| CTE (100–180°C), µm/m/°C | 218 |
| Durometer Hardness (Shore D) | 84 |
| Water Absorption (25°C, 24 hr) | 2.60% |
| Water Absorption (80°C, 24 hr) | 9.06% |
| Water Absorption (97°C, 1.5 hr) | 5.77% |
| Shear Strength (Al vs. Al) | 207 kgf/cm² |
| Tensile Strength | 40 MPa |
| Elongation | 3.8% |
| Flexural Strength | 68 MPa |
| Flexural Modulus | 2,000 MPa |
| Compression Strength | 70 MPa |
| Degradation Temperature (TGA, 10°C/min) | 332°C |
| Volume Resistivity | 5 × 10¹⁵ ohm-cm |
| Surface Resistivity | 5 × 10¹⁴ ohm |
| Dielectric Constant (100Hz) | 4.1 |
