Brand: Everwide

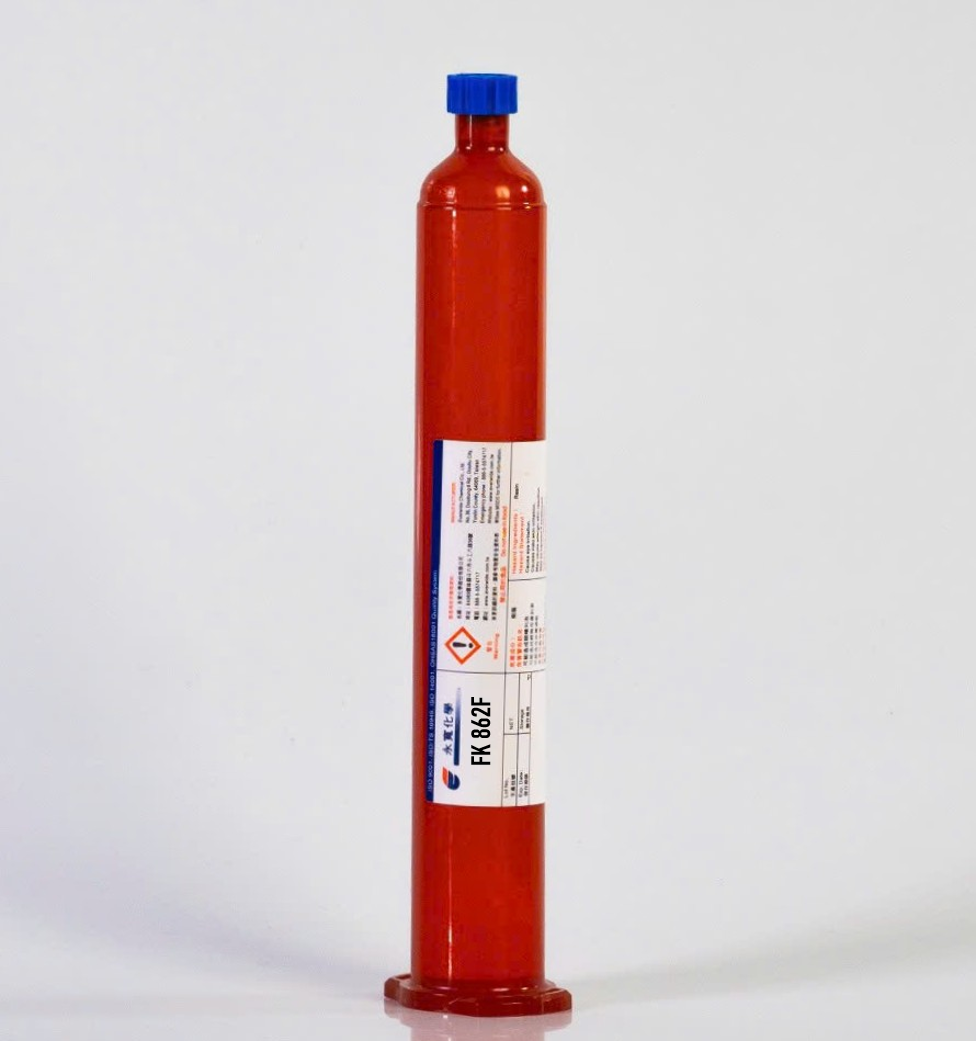

Product Number: FK862F
Technology: Photo-Curing Acrylic Resin
Color: Opaque
Cure Type: UV Curing
Package Size: Contact us for details
Shelf Life: 8 months
Everwide FK862F is a UV-curable adhesive designed for reinforcement and bonding in BGA, CSP, and electronic connectors. It prevents peeling and short circuits during bending, offering high mechanical strength and fracture energy absorption. The cured surface remains dry, dust-free, and non-tacky, making it ideal for high-speed production in electronics encapsulation.
| Property | FK862F |
|---|---|
| Chemical Composition | Acrylic Resin |
| Appearance | Liquid |
| Color | Opaque |
| Viscosity (25°C, S14 100rpm, cps) | 4,500–6,100 |
| Viscosity (25°C, S14 10rpm, cps) | 24,000–38,000 |
| Thixotropic Index | 4.5–6 |
| Specific Gravity (25°C) | 1.10 |
| Solvent Content | 0% |
| Curing Equipment | Recommended Wavelength (nm) | Minimum Light Intensity (mW/cm²) | Minimum Light Energy (mJ/cm²) |
|---|---|---|---|
| Mercury-vapor / Halogen Lamp | 310–365 | > 50 | 1,000–2,000 |
| LED Light | 365–395 | > 50 | 1,500–2,500 |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) (TMA) | 86°C |
| CTE (<Tg), µm/m/°C | 110 |
| CTE (>Tg), µm/m/°C | 195 |
| Durometer Hardness (Shore D) | 76 |
| Shear Strength (PC vs. PC) | 63 kgf/cm² |
| Elongation | 56% |
| Breaking Value | 23 N/mm² |
| Tensile Strength | 18 N/mm² |
| Thermal Conductivity | 0.18 W/mK |
| Volume Resistivity (@500V) | 5.61 × 10¹⁴ ohm-cm |
| Surface Resistivity (@500V) | 1.76 × 10¹⁵ ohm |
| Dielectric Constant / Loss Factor (100Hz) | 3.4721 / 0.0757 |
| Dielectric Constant / Loss Factor (1,000Hz) | 3.3871 / 0.0506 |
| Dielectric Constant / Loss Factor (10,000Hz) | 3.1178 / 0.0513 |
| Dielectric Constant / Loss Factor (100,000Hz) | 3.2915 / 0.1733 |
