Brand: Everwide

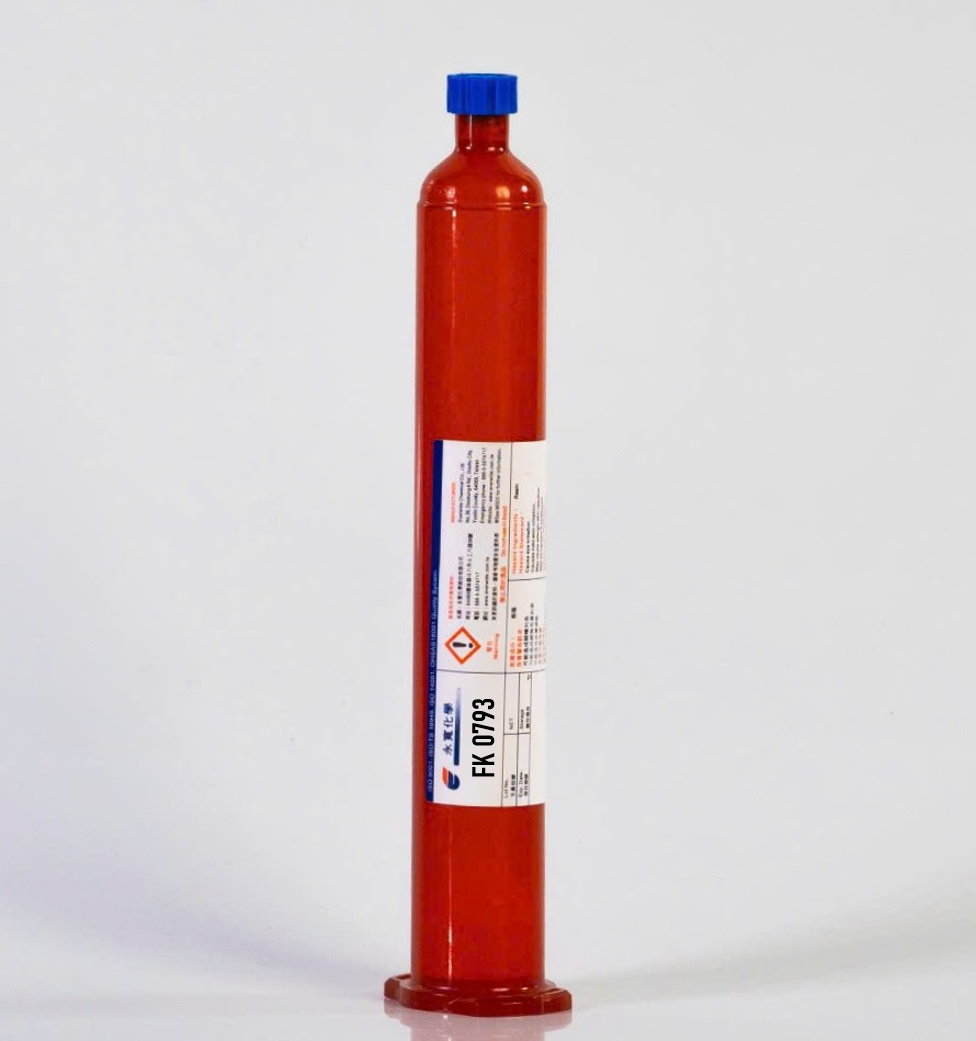

Product Number: FK0793
Technology: Photo-Curing Acrylic Adhesive
Color: Opaque
Cure Type: UV Curing
Package Size: Contact us for details
Shelf Life: 1 year
Everwide FK0793 is a UV-curable adhesive designed for connector reinforcement and bonding applications in computer connectors, PVC, PET, PI, and PCB assemblies. This adhesive offers high strength, dust-proof and non-tacky cured surfaces, and fast curing under UV light, making it highly suitable for electronics encapsulation applications.
| Property | FK0793 |
|---|---|
| Composition | Acrylic Resin |
| Appearance | Liquid |
| Color | Opaque |
| Viscosity (25°C, S14 10rpm, cps) | 19,000–25,000 |
| Specific Gravity (26.5°C) | 1.0822 |
| Refractive Index (nD 20@25.6°C) | 1.4749 |
| Solvent Content | 0% |
| Property | Value |
|---|---|
| Recommended Wavelength | 310–400 nm |
| Minimum Light Intensity | >50 mW/cm² |
| Minimum Light Energy | 1,000–2,000 mJ/cm² |
| Property | Value |
|---|---|
| Glass Transition Temperature (Tg) (TMA) | 33°C |
| CTE (<Tg), µm/m/°C | 102 |
| CTE (>Tg), µm/m/°C | 248 |
| Durometer Hardness (Shore D) | 63 ± 2 |
| Specific Gravity (26°C) | 1.1764 |
| Water Absorption Ratio (25.4°C, 24 hr) | 6.84% |
| Shear Strength (Acrylic vs. Acrylic) | 44 kgf/cm² |
| Shear Strength (Glass vs. Glass) | 24 kgf/cm² |
| Modulus of Elasticity | 0.274 MPa |
| Refractive Index (nD @25.8°C, 57%RH) | 1.4982 |
| Volume Shrinkage | 8.01% |
| Volume Resistivity | 3.18 × 10¹⁴ ohm-cm |
| Surface Resistivity | 1.8 × 10¹³ ohm |
| Dielectric Constant (1 Hz) | 4.8036 |
| Dielectric Constant (10 Hz) | 4.3021 |
| Dielectric Constant (100 Hz) | 3.9614 |
| Dielectric Constant (1,000 Hz) | 3.7055 |
| Dielectric Constant (10,000 Hz) | 3.4249 |
| Dielectric Constant (100,000 Hz) | 3.4581 |
