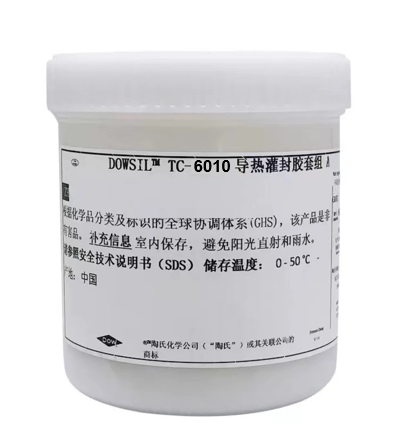

Brand Name: DOWSIL™ TC-6010 Thermally Conductive Encapsulant
Available Sizes: as 1 kg cans, with larger sizes (e.g., 5 kg or more).
Shelf Life: The exact shelf life is not specified in the available documentation.
DOWSIL™ TC-6010 Thermally Conductive Encapsulant is a two-part, flowable silicone elastomer designed to provide efficient heat dissipation and protection for electronic components. It cures with heat to form an elastic, thermally conductive rubber, making it ideal for applications such as on-board chargers, inverters, converters, transformers, and other electronic and electric components.
Applications:
Typical Properties:
| Property | Unit | Value |
|---|---|---|
| Mixing Ratio (by weight) | 1:1 | |
| Color (Part A/B) | White/Blue | |
| Viscosity (Part A / Part B / Mixed) | mPa·s | 2400 / 2400 / 2700 |
| Heat Cure Time at 60°C | minutes | 60 |
| Heat Cure Time at 100°C | minutes | 30 |
| Specific Gravity (Part A / Part B) | 1.67 / 1.66 | |
| Specific Gravity (Cured) | 1.67 | |
| Pot Life at 25°C | hours | 2.5 |
| Hardness | Shore A | 37 |
| Adhesion Strength on Aluminum at 60°C | MPa | 0.21 |
| Adhesion Strength on Aluminum at 100°C | MPa | 0.23 |
| Thermal Conductivity | W/m·K | 1.2 |
| Tensile Strength | MPa | 0.93 |
| Elongation | % | 50 |
| Shear Modulus by DMA at 25°C | MPa | 3.3 |
| Dielectric Strength | kV/mm | 22 |
| Volume Resistivity | Ohm·cm | 3.20E+12 |
| Coefficient of Thermal Expansion (CTE) | ppm/K | 174 |
| Dielectric Constant at 100 Hz | 2.40 | |
| Dielectric Constant at 100 kHz | 2.75 | |
| Dissipation Factor at 100 Hz | 0.0035 | |
| UL 94 Flammability Classification | V-0 |
