UV-CURING ENCAPSULATION EPOXY RESIN
Manufacturer: Bostik
Package Size: Contact us for details
Shelf Life: 12 months

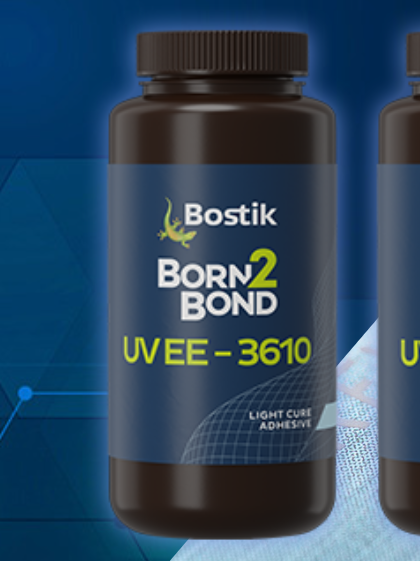

Born2Bond™ UV EE 3610 is a one-component, epoxy-based UV-curing encapsulant and adhesive. It cures quickly under UVA light to form a hard, resilient polymer with excellent internal flexibility. This epoxy exhibits superior flow characteristics, low-stress curing, and strong adhesion to metals, plastics, glass, and ceramics. It is ideal for electronic component encapsulation and bonding transparent substrates.
✔ UV/LED curing, solvent-free, and VOC-free
✔ Hard, tack-free, resilient epoxy polymer
✔ Easy and fast application with automated dispensing equipment
✔ Excellent flow characteristics and low-stress curing
✔ Humidity resistant
✔ RoHS Compliant (2015/863/EU)
✔ Halogen-Free (IEC 61249-2-21)
✔ Electronic components
✔ Chip modules (smart cards, SIM cards, health insurance cards)
✔ Encapsulation for humidity-sensitive applications
✔ Adhesive for transparent substrates
| Property | Value |
|---|---|
| Basis Technology | Modified Epoxy |
| Filler Content | 40% (D98 ≤ 32 µm) |
| Viscosity @ 25°C (mPa·s) | 3,500 – 4,500 |
| Thixotropic Index | 2.2 – 2.4 |
| Appearance/Color | Translucent |
| Hardness (Shore D) | 78 – 82 |
| Glass Transition Temperature (°C) | 65 – 70 |
| Operating Temperature (°C) | -55°C to +150°C |
| CTEα1 (ppm/°C) | 47 |
| CTEα2 (ppm/°C) | 140 |
| Property | Value |
|---|---|
| Optimal Wavelength (nm) | 310 – 365 |
| Optimal Intensity (mW/cm²) | 140 – 175 |
| Optimal Curing Time (sec) | 60 |
| Cure Acceleration | Heat may accelerate cure |
