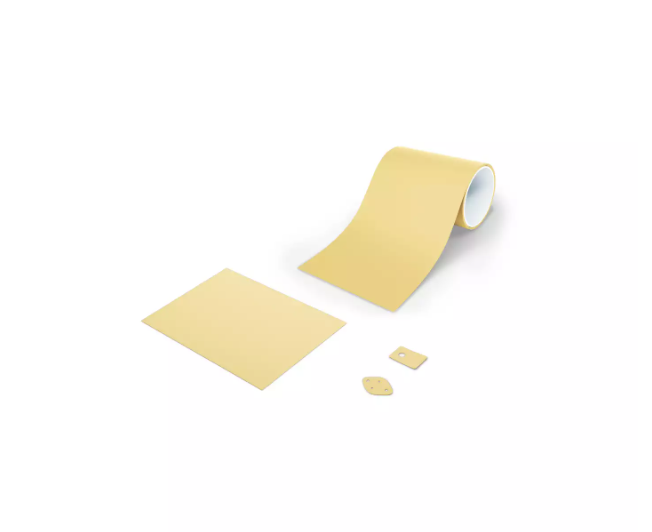

BERGQUIST HI FLOW THF 1500P (also known as BERGQUIST HI-FLOW 650P) is a thermally conductive phase change material with electrical insulation. It features a polyimide reinforcement carrier, providing high dielectric strength and cut-through resistance. The material is naturally tacky on one side, making it easier to assemble.
Key Features & Benefits:
| Property | Test Method | Value |
|---|---|---|
| Appearance | – | Gold |
| Total Thickness (mm) | ASTM D374 | 0.114 – 0.14 |
| Film Thickness (mm) | ASTM D374 | 0.025 – 0.05 |
| Elongation (%) | ASTM D882 | 40 |
| Tensile Strength (psi) | ASTM D882A | 7,000 |
| Phase Change Temperature (°C) | ASTM D3418 | 52 |
| Flammability Rating | UL 94 | V-0 |
| Property | Test Method | Value |
|---|---|---|
| Dielectric Breakdown Voltage (Vac) | ASTM D149 | 5,000 |
| Dielectric Constant @ 1,000 Hz | ASTM D150 | 4.5 |
| Volume Resistivity (ohm-meter) | ASTM D257 | 1×10¹² |
| Property | Test Method | Value |
|---|---|---|
| Thermal Conductivity (W/m-K) | ASTM D5470 | 1.5 |
| Thickness (inches) | @10 psi | @25 psi | @50 psi | @100 psi | @200 psi |
|---|---|---|---|---|---|
| 0.001″ | 1.2 | 1.15 | 1.11 | 1.06 | 1.00 |
| 0.0015″ | 1.47 | 1.41 | 1.37 | 1.33 | 1.29 |
| 0.002″ | 1.59 | 1.48 | 1.43 | 1.38 | 1.35 |
| Thickness (inches) | @10 psi | @25 psi | @50 psi | @100 psi | @200 psi |
|---|---|---|---|---|---|
| 0.001″ | 0.21 | 0.2 | 0.19 | 0.18 | 0.17 |
| 0.0015″ | 0.23 | 0.22 | 0.21 | 0.2 | 0.2 |
| 0.002″ | 0.27 | 0.27 | 0.26 | 0.25 | 0.24 |
