1. Product Overview

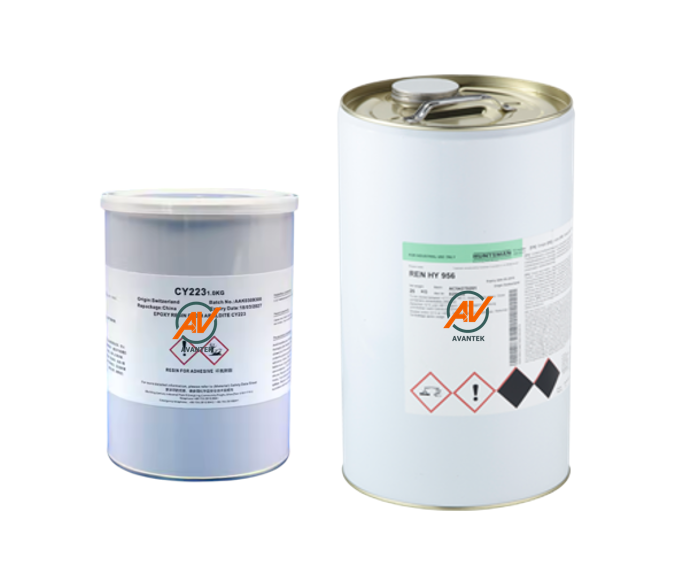

Araldite Casting Resin System consists of Araldite MY 757, Araldite CY 223, and different hardeners (HY 842, HY 956 EN, HY 1473 BD). This system is designed for processing and curing at room temperature or slightly higher temperatures. It offers low initial viscosity, high filler addition possibility, good mechanical resistance, and resistance to atmospheric and chemical degradation. It is mainly used for encapsulating and potting low voltage and electronic components.
2. Applications
3. Typical Properties
| Property | Araldite MY 757 | Araldite CY 223 | Hardener HY 842 | Hardener HY 956 EN | Hardener HY 1473 BD |
|---|---|---|---|---|---|
| Viscosity (mPa.s) at 25°C | ~550 | ~500 | ~750 | 450 | 700 |
| Specific Gravity (g/cm³) at 25°C | 1.2 | 1.15 | 0.95 | 1.02 | 0.98 |
| Flash Point (°C) | 138 | 160 | 155-166 | 175-185 | 116-122 |
| As Supplied Form | Clear, pale yellow liquid | Clear, pale yellow liquid | Brown liquid | Clear, pale yellow/yellow liquid | Brown liquid |
| Property | System 1 (MY 757 + HY 842) | System 2 (MY 757 + HY 956 EN) | System 3 (MY 757 + HY 1473 BD) | System 4 (CY 223 + HY 956 EN) |
| Shore D Hardness (25°C) | 65 | 75 | 69 | 78 |
| Glass Transition Temperature (°C) | 40 | 50 | 46 | 57 |
| Tensile Strength (MPa) | 37 | 90 | 39 | 75 |
| Elongation at Break (%) | 4 | 4 | 3 | 3 |
| Elastic Modulus (MPa) | 1440 | 2988 | 2118 | 3230 |
| Water Absorption (10 days, 23°C) | 0.69% | 0.31% | 0.47% | 0.51% |
| Dielectric Constant (50Hz, 23°C) | 3.3 | 3.6 | 3.4 | 3.5 |
| Volume Resistivity (Ω⋅cm, 23°C) | 7×10¹⁴ | 2×10¹⁶ | 2×10¹⁵ | 1×10¹⁶ |
| Electric Strength (kV/mm, 23°C) | 28 | 30 | 27 | 29 |
