Technology: One-component, heat-curing epoxy adhesive

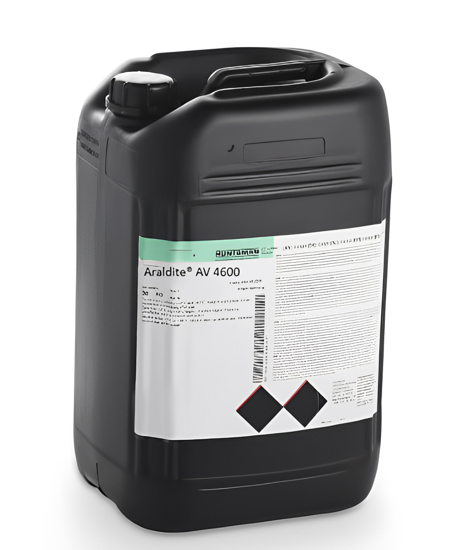

Product code: Huntsman Araldite® AV 4600
Manufacturer: Huntsman
Size: Available in various packaging sizes (specific details upon request)
Shelf life: To know more, contact Avantek
Araldite® AV 4600 is a one-component, heat-curing epoxy adhesive designed for high-impact resistance and durability. It exhibits exceptional toughness, even at subzero temperatures, and provides excellent adhesion to metals and other materials. The adhesive cures at elevated temperatures, forming strong and chemically resistant bonds.
| Property | Value |
|---|---|
| Color | Orange |
| Specific Gravity | ~1.2 |
| Viscosity | Thixotropic paste |
| Gap-filling Ability | Up to 3 mm |
| Curing Temperature | 150-200°C |
| Curing Time | 40 min (160°C), 30 min (180°C), 20 min (200°C) |
| Lap Shear Strength @ 23°C | 40-44 N/mm² (varies with temperature) |
| Heat Resistance | Up to 120°C |
| Glass Transition Temperature (Tg) | ~110°C |
| Impact Peel Strength | 18-20 N/mm (40°C), 16-19 N/mm (23°C), 10-12 N/mm (-40°C) |
| Chemical Resistance | Good resistance to oils, fuels, and some solvents |
| Storage Life | 2 years at 2-8°C, 6 months at 15-25°C |
| Cured Property | Value |
|---|---|
| Tensile Strength | ~60 MPa |
| Elongation at Break | ~5% |
| Elastic Modulus (E-modulus) | 3-5 GPa |
| Shear Modulus | 3.5 GPa at 25°C, 3.2 GPa at 125°C |
| Resistance to Thermal Cycling | Retains ~40.2 N/mm² after 100 cycles (-30°C to +70°C) |
