Brands: VHB™
Package size: Standard Length 65.8 m (72 yd)
Core Size (ID) 76.2 mm (3 in)
Tape Thickness
5981-015: (0.006 in) 0.150 mm
5981-020: (0.08 in) 0.200 mm
5981-025: (0.010 in) 0.250 mm
5981-030: (0.012 in) 0.300 mm
Shelf Life: 24 months

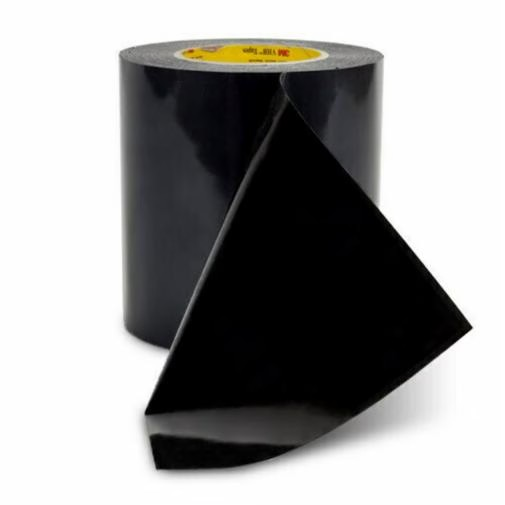

3M™ VHB™ Tape 5980 is a black, acrylic foam tape available in four thicknesses: 0.15 mm, 0.20 mm, 0.25 mm, 0.30 mm. This thin 3M™ VHB™ Tape is used for bonding a wide range of materials in the electronics industry. It is designed specifically for applications with thin bond lines. It boasts very good impact resistant to meet industry drop test requirements.
Product Features
• Thin foam tapes with pressure sensitive adhesive (PSA) on both sides • Good impact resistance and conformability •
High bond strength
Recommended Application
| Attribute Name | Test Method | Value |
| Color | Black | |
| Adhesive Type | Acrylic | |
| Density | ASTM D3574 | 910 kg/m³ (57 lb/ft³) ¹ |
| Total Tape Thickness | ASTM D3652 | 0.15 mm (6 mil) |
| Liner | Polyester | |
| Primary Liner Thickness | 0.08 mm (3 mil) | |
| Secondary Liner Thickness | 0.05 mm (2 mil) | |
| Primary Liner Color | Clear | |
| Thickness Tolerance | ± 15 % |
¹ Foam with adhesive
