Brands: VHB™
Package Size: Standard Length 32.9 m (36 yd)
Minimum Width: 6.4 mm (0.25 in)
Maximum Width: 1219 mm (48 in)
Core Size (ID): 76.2 mm (3 in)
Shelf Life: 24 months

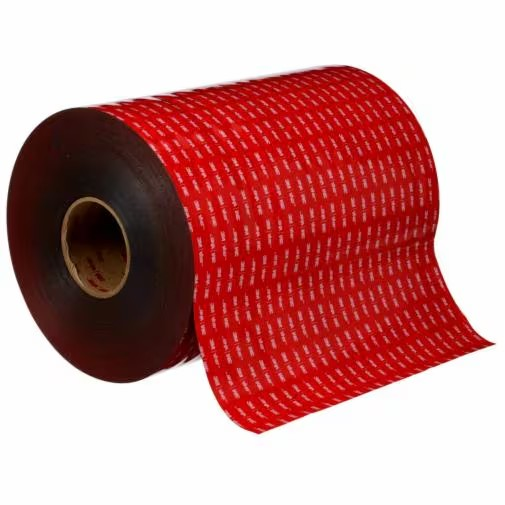

3M™ VHB™ Architectural Panel Tape B16F is a durable, high-performance, double-sided pressure-sensitive acrylic foam tape. It is commonly used in the construction industry for bonding architectural panels, curtain walls, exterior building cladding, and interior panel and trim attachment. This tape provides a strong, permanent bonding solution, replacing mechanical fasteners such as rivets, spot welds, and screws while offering immediate handling strength.
| Attribute | Test Method | Value |
|---|---|---|
| Color | – | Black |
| Adhesive Type | – | Multi-Purpose Acrylic |
| Foam Type | – | Conformable Acrylic Foam |
| Density | ASTM D3574 | 720 kg/m³ (45 lb/ft³) |
| Total Tape Thickness | ASTM D3652 | 1.6 mm (62 mil) (0.062 in) ±10% |
| Liner | – | PE Film |
| Liner Thickness | – | 0.13 mm (5 mil) (0.005 in) |
| Primary Liner Color | – | Red (printed) |
Temperature: 23 °C (73 °F), Dwell Time: 72 h
| Test | Test Method | Substrate | Value |
|---|---|---|---|
| 90° Peel Adhesion | ASTM D3330 | Stainless Steel, 5 mil Aluminum Foil | 52.5 N/cm (30 lb/in) |
| Normal Tensile | ASTM D897 | Aluminum | 480 kPa (70 lb/in²) |
| Overlap Shear Strength | ASTM D1002, ISO 4587 | Stainless Steel | 550 kPa (80 lb/in²) |
| Static Shear (23°C / 73°F) | ASTM D3654 | Stainless Steel | 1,000 g |
| Static Shear (66°C / 150°F) | ASTM D3654 | Stainless Steel | 500 g |
| Static Shear (93°C / 200°F) | ASTM D3654 | Stainless Steel | 500 g |
| Minimum Application Temperature | – | – | 15 °C (60 °F) |
| Short-Term Temperature Resistance | – | – | 149 °C (300 °F) |
| Long-Term Temperature Resistance | – | – | 93 °C (200 °F) |
