Brands: VHB™
Package size: Standard Length 55 m
Shelf Life: 24 months

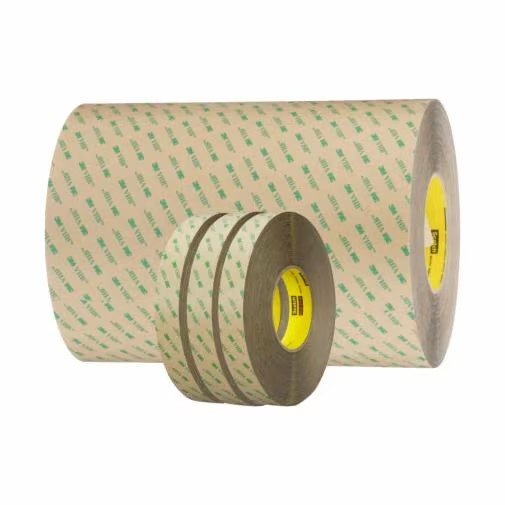

3M™ VHB™ Adhesive Transfer Tape F9473PC utilizes the 3M™ High Performance Acrylic Adhesive 100MP, which has excellent long term holding power with much higher adhesion strength than typical pressure sensitive adhesive systems. This 3M™ VHB™ Adhesive Transfer Tape is transparent and is ideal for use in many interior and exterior industrial applications to replace rivets, spot welds, liquid adhesives, and other permanent fasteners.
Recommended Applications
Ideal for use in many indoor and outdoor industrial applications, 3M™ VHB™ Adhesive Transfer Tape F9473PC provides solutions such as industrial joining and metal fabrication.
| Attribute Name | Test Method | Value |
| Adhesive Type | Acrylic | |
| Density | 1.012 g/cm³ (0.04 lb/in³) | |
| Total Tape Thickness | ASTM D3652 | 0.26 mm (10 mil) |
| Liner Print | 3M VHB | |
| Liner | 58# Polycoated Kraft Paper (PCK) | |
| Liner Thickness | 0.1 mm (4 mil) |
Typical Performance Characteristics
Temperature: 23 °C (73 °F) Backing: 2 mil Aluminum Foil
| Attribute Name | Test Method | Value |
| 180° Peel Adhesion | ASTM D3330 | 15.8 N/cm (144 oz/in) ¹ |
¹ 304 mm/min (12 in/min)
| Attribute Name | Test Method | Temperature | Substrate | Value |
| Overlap Shear
Strength |
ASTM D1002, ISO
4587 |
Stainless Steel | 550 kPa (80 lb/in²) | |
| Normal Tensile | ASTM D897 | 23 °C (73 °F) | Aluminum | 690 kPa (100 lb/in²) |
Test Method: ASTM D3654
| Temperature | Value |
| 23 °C (73 °F) | 1,000 g ¹ |
| 66 °C (150 °F) | 1,000 g ¹ |
| 93 °C (200 °F) | 1,000 g ¹ |
| 121 °C (250 °F) | 1,000 g ¹ |
| 149 °C (300 °F) | 1,000 g ¹ |
| 177 °C (350 °F) | 500 g ¹ |
¹ Static shear measured at various temperatures and gram loadings on stainless steel. Will hold listed weight for 10,000 minutes.
| Attribute Name | Value |
| Short Term Temperature Resistance | 260 °C (500 °F) ¹ |
| Long Term Temperature Resistance | 149 °C (300 °F) ² |
¹ No change in room temperature dynamic shear properties following 4 hour conditioning at indicated temperature with 100 g/static load. (Represents minutes, hour in a process type temperature exposure).
² Maximum temperature where tape supports at least 78g/cm² (500 g/in²) in static shear for 10,000 minutes. (Represents continuous exposure for day or weeks).
