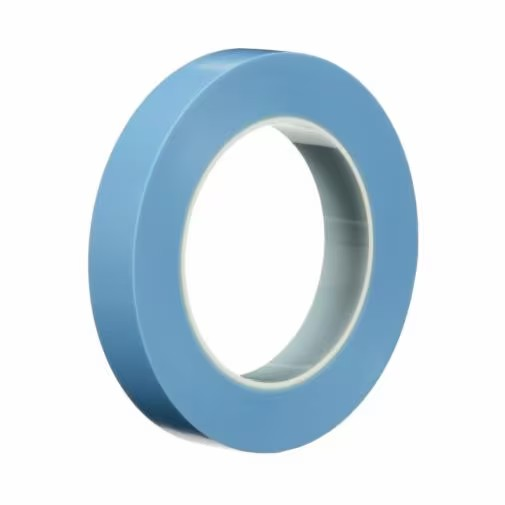

3M™ Scotch® Fine Line Masking Tape 2800 Blue

Brand: 3M™ Scotch®

Product Number: 2800

Technology: Fine Line Masking Tape

Color: Blue (Translucent)

Form: Polyolefin Film Tape

Adhesive Type: Acrylic

Backing Material: Polyolefin Film

Package Sizes

  • Standard Roll Length: 50 meters (54.6 yards)

Shelf Life: 12 months

Product Description

3M™ Scotch® Fine Line Masking Tape 2800 Blue is a conformable tape designed for achieving sharp paint lines and color separation on both curves and straight lines. It is particularly effective in high-temperature painting applications requiring a conformable tape and can be used outdoors with clean removal for up to 7 days.

Key Features

  • Balanced Conformability: Ideal for masking curves, straight lines at low tension, and surface contours such as rivets and lap seams.
  • Special Polyolefin Backing: Highly conformable and plasticizer-free.
  • High-Temperature Acrylic Adhesive: Suitable for paint systems prone to residue, tape tracking, or ghosting by rubber adhesive tapes.
  • Designed for TPO Surfaces: Optimized for paint masking on thermoplastic olefin (TPO) surfaces.
  • Heat Resistant: Withstands bake cycles up to 149°C (300°F) for 30 minutes; for best results, remove when warm at 21-65°C (70-150°F).
  • Sunlight Resistant: Maintains performance for up to 7 days outdoors on opaque surfaces.
  • Compatibility: Compatible with many industrial paints; user testing is recommended before use.
  • Sharp Paint Lines: Ensures precise paint lines without tracking, bleeding, or ghosting.
  • Translucent Backing: Assists in placement and allows visual confirmation of adhesive wet-out on the substrate.

Recommended Applications

  • Transportation OEM industry for paint masking of metal and plastic surfaces.
  • Temporary protection of some metal, painted, plastic, and rubber surfaces.

Technical Data

Typical Physical Properties

Property Value
Color Blue (Translucent)
Adhesive Type Acrylic
Backing Material Polyolefin Film
Total Tape Thickness 0.105 mm (4.1 mil)

Typical Performance Characteristics

Property Test Method Value
180° Peel Adhesion ASTM D3330 1.7 N/cm (16 oz/in)
Elongation at Break ASTM D3759 1,000%
Tensile Strength ASTM D3759 35 N/cm (20 lb/in)
Temperature Use Range Up to 149°C (300°F) for 30 minutes

Application Characteristics

  • Temperature Resistance: Up to 149°C (300°F) for 30 minutes.
