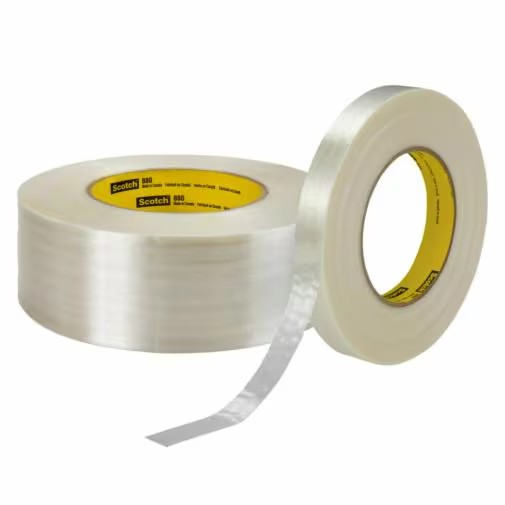

3M™ Scotch® Filament Tape 880, high-performance transparent tape

Brand: 3M™ Scotch®

Product Number: 880

Technology: Filament-Reinforced Tape

Color: Transparent

Form: Filament-Reinforced Polypropylene Tape

Adhesive Type: Pressure-Sensitive Synthetic Rubber Resin

Reinforcement: Continuous Polyester Yarn Filaments

Backing Material: Biaxially Oriented Polypropylene (BOPP)

Package Sizes

  • Available Widths:
    • 12 mm (0.47 in)
    • 18 mm (0.71 in)
    • 24 mm (0.94 in)
    • 36 mm (1.42 in)
    • 48 mm (1.89 in)
  • Available Lengths:
    • 55 m (60.1 yd)

Shelf Life

  • 18 months

Product Description

3M™ Scotch® Filament Tape 880 is a high-performance tape reinforced with continuous polyester yarn filaments, providing high tensile strength, impact resistance, and cut resistance. Its polypropylene film backing offers excellent abrasion and moisture resistance, while the aggressive synthetic rubber resin adhesive ensures a strong bond to fiberboard, non-oily metals, and various painted and printed surfaces.

Key Features

  • High Tensile Strength: Allows the use of less tape in many applications, lowering the cost per application.
  • Abrasion and Moisture Resistant: Tough film backing protects the filaments and adhesive, providing longer functional tape performance.
  • Good Handling: Saves time through ease of dispensing and tape application.
  • Printable: When printed, the tape provides advertising, warning, and labeling capability.
  • Cut and Impact Resistant: The polyester filaments absorb the shock of rough, high-impact handling to keep packages secure during shipping.
  • High Shear Adhesion: Provides good holding under a wide range of application conditions with a minimum amount of tape.
  • Excellent Aging: Boxes remain securely closed through normal warehouse time cycles.

Recommended Applications

  • Pipe and Conduit Bundling: Securing pipes and conduits together for transportation or storage.
  • Metal Splicing and Coil Tabbing: Joining metal sheets or securing coil ends.
  • High-Strength Reinforcing: Providing additional strength to packages or materials.
  • Heavy-Duty Strapping: Securing heavy items during shipping or handling.

Technical Data

Typical Physical Properties

Property Value
Adhesive Type Pressure-sensitive synthetic rubber resin
Backing Material Biaxially Oriented Polypropylene (BOPP)
Reinforcement Continuous Polyester Yarn Filaments
Total Tape Thickness 0.196 mm (7.7 mil)

Typical Performance Characteristics

Property Test Method Value
180° Peel Adhesion ASTM D3330 88 N/100mm (80 oz/in)
Elongation at Break ASTM D3759 19%
Tensile Strength ASTM D3759 4725 N/100mm (270 lb/in)

Application Characteristics

  • Minimum Application Temperature: 4°C (40°F)
  • Service Temperature Range: 4°C to 27°C (40°F to 80°F)
