Brands: 3M™
Package Sizes:
Shelf Life: 24 months

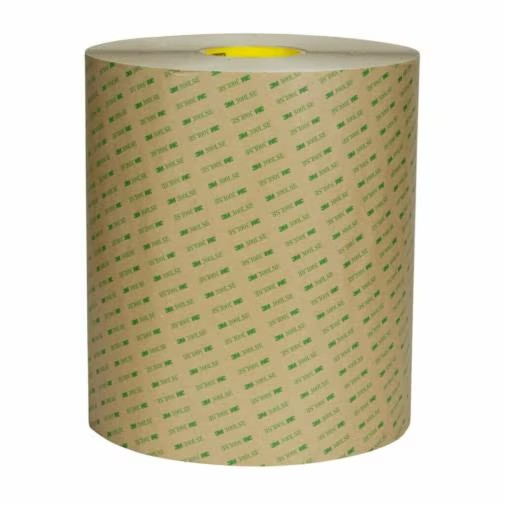

3M™ Double Coated Tape 93020LE is a high-strength adhesive tape featuring 3M™ High Strength Acrylic Adhesive 300LSE, designed to provide excellent bond strength to a variety of substrates, including low surface energy plastics such as polypropylene and powder-coated paints. It also adheres well to surfaces contaminated with oil, typically found in machine parts.
| Attribute | Test Method | Value |
|---|---|---|
| Adhesive Type | – | 3M™ 300LSE Acrylic |
| Adhesive Carrier | – | Clear Polyester |
| Adhesive Thickness (Faceside) | – | 0.095 mm (3.7 mil) |
| Carrier Thickness | – | 0.012 mm (0.5 mil) |
| Adhesive Thickness (Backside) | – | 0.095 mm (3.7 mil) |
| Total Tape Thickness | ASTM D3652 | 0.2 mm (7.9 mil) |
| Liner Material | – | 58# Polycoated Kraft Paper (PCK) |
| Liner Thickness | – | 0.11 mm (4.2 mil) |
| Liner Color | – | Tan |
180° Peel Adhesion (ASTM D3330, 23°C / 73°F, 2 mil Aluminum Foil Backing)
| Dwell Time | Substrate | Peel Strength |
|---|---|---|
| 15 min | ABS | 15.9 N/cm (145 oz/in) |
| 15 min | Polycarbonate (PC) | 18.1 N/cm (165 oz/in) |
| 15 min | Polypropylene (PP) | 17 N/cm (155 oz/in) |
| 15 min | Stainless Steel | 17 N/cm (155 oz/in) |
| 72 h | ABS | 17 N/cm (155 oz/in) |
| 72 h | Polycarbonate (PC) | 19.7 N/cm (180 oz/in) |
| 72 h | Polypropylene (PP) | 19.2 N/cm (175 oz/in) |
| 72 h | Stainless Steel | 18.6 N/cm (170 oz/in) |
| Temperature | Load | Shear Strength |
|---|---|---|
| 23°C (73°F) | 1000 g | >10,000 min |
| 70°C (158°F) | 500 g | >10,000 min |
| Attribute | Value |
|---|---|
| Short-Term Temperature Resistance | 149°C (300°F) |
| Long-Term Temperature Resistance | 93°C (200°F) |
| Breakdown Voltage | 7,500 V |
