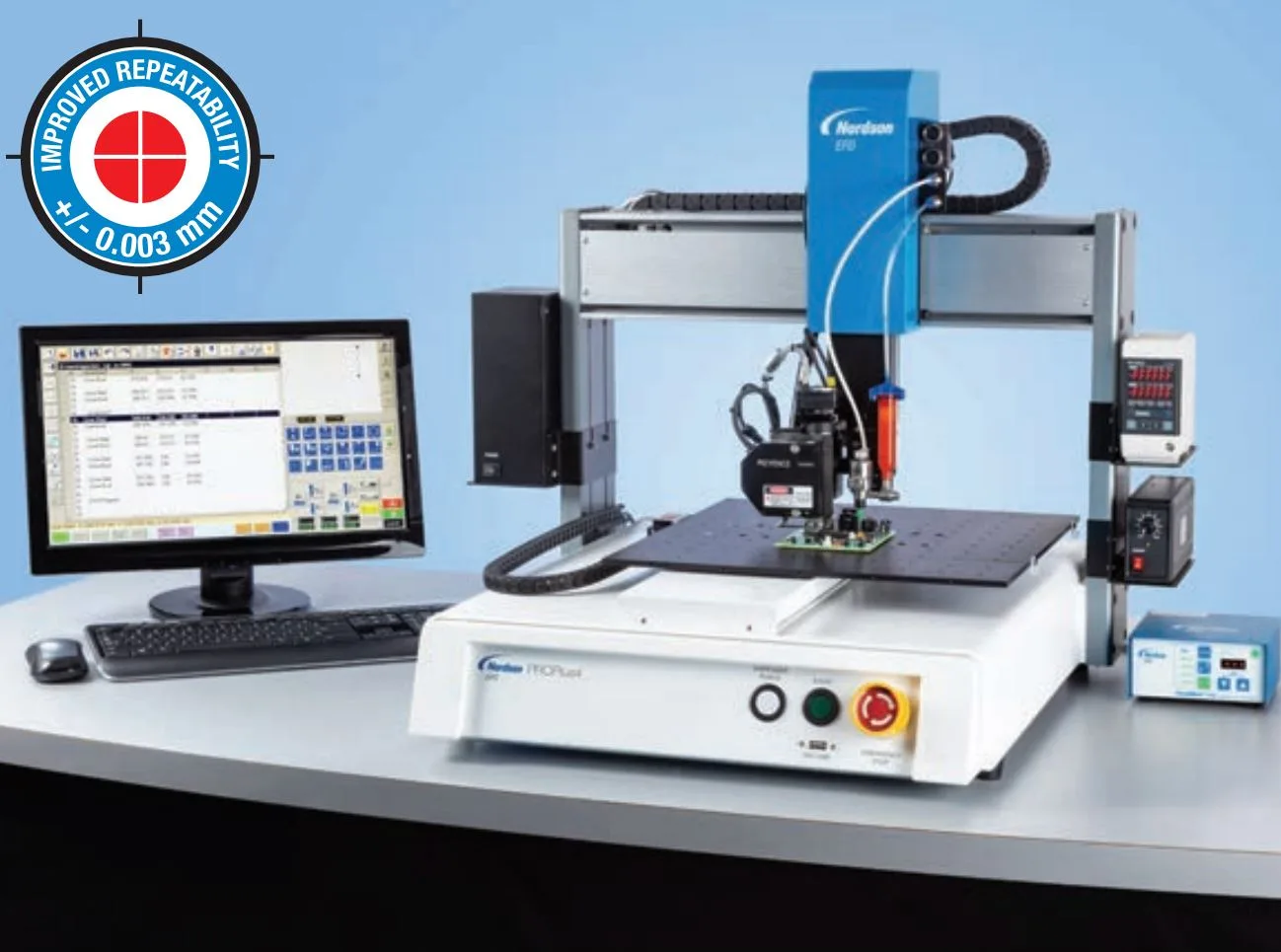

The Nordson EFD PROPlus / PRO Series is a high-precision, vision-guided automated dispensing system designed for fluid dispensing applications. Equipped with DispenseMotion™ software, smart vision CCD cameras, and optional laser height sensing, these systems provide best-in-class accuracy and repeatability for industrial dispensing tasks.
✔ Smart Vision System – CCD camera verifies workpiece presence and orientation.
✔ Laser Height Sensing (PROPlus/L & PRO/L models) – Automatically adjusts for surface variations, ensuring even dispensing.
✔ Best-in-Class Repeatability – PROPlus: ±0.003 mm | PRO: ±0.004 mm for higher precision.
✔ Intelligent Motion Control – 3D motion programming for dots, lines, circles, arcs, and compound arcs.
✔ High-Speed Operation – Up to 800 mm/s, reducing cycle times.
✔ Closed-Loop Encoding – Automatically compensates for height and position variations.
✔ Intuitive Programming – On-screen preview of dispensing paths for easy setup.
| Model | PRO3 / PRO3L | PROPlus3 / PROPlus3L | PRO4 / PRO4L | PROPlus4 / PROPlus4L |
|---|---|---|---|---|
| Working Area (X/Y/Z) [mm] | 250 / 250 / 100 | 250 / 250 / 100 | 350 / 350 / 100 | 350 / 350 / 100 |
| Workpiece Payload | 10.0 kg (22.0 lb) | 25.0 kg (55.1 lb) | 10.0 kg (22.0 lb) | 25.0 kg (55.1 lb) |
| Tool Payload | 3.5 kg (7.7 lb) | 6.0 kg (13.2 lb) | 3.5 kg (7.7 lb) | 6.0 kg (13.2 lb) |
| Max Speed (XY/Z) [mm/s] | 500 / 250 | 800 / 250 | 500 / 250 | 800 / 250 |
| Drive System | 5-phase micro-stepping motor | Servomotor | 5-phase micro-stepping motor | Servomotor |
| Repeatability | ±0.004 mm | ±0.003 mm | ±0.004 mm | ±0.003 mm |
| Vision System | CCD Smart Camera | CCD Smart Camera | CCD Smart Camera | CCD Smart Camera |
| Laser Height Sensing | Optional | Included | Optional | Included |
| Power Supply | 100–240 VAC, 50/60 Hz, 380 W | 100–240 VAC, 50/60 Hz, 380 W | 100–240 VAC, 50/60 Hz, 380 W | 100–240 VAC, 50/60 Hz, 380 W |
